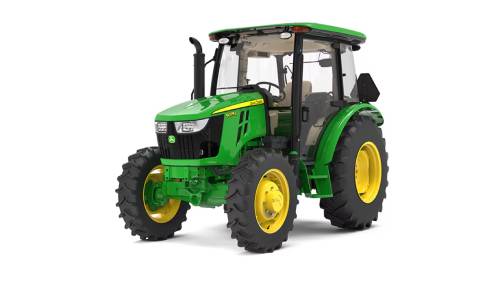

John Deere 5075E cab air TINT windows
Utility Tractor
- 2WD or MFWD
- 5-year Powertrain warranty*
- Available in premium cab, standard cab or open operator station
- No Regen required
Features
Enjoy premium comfort and value of Premium Cab
Jobs seem easier when you are comfortable and the premium cab on the 5E 3-Cylinder Tractor is designed for you to enjoy. No matter the weather, the Premium Cab is ready for you to climb in and explore the value in the same-sized utility tractor to get the job done. With exclusive features like sunroof with sunshade, Electronic Quick Raise-Lower (EQRL) hitch controls, Go-Home Lighting, and loaded with features that are extras on a standard cab, this 5E Cab has lots to experience.
Enjoy premium comfort and value of Premium Cab
Jobs seem easier when you are comfortable and the premium cab on the 5E 3-Cylinder Tractor is designed for you to enjoy. No matter the weather, the Premium Cab is ready for you to climb in and explore the value in the same-sized utility tractor to get the job done. With exclusive features like sunroof with sunshade, Electronic Quick Raise-Lower (EQRL) hitch controls, Go-Home Lighting, and loaded with features that are extras on a standard cab, this 5E Cab has lots to experience.
- Controls at your fingertips including the ergonomic controls on the right-hand console
- Smooth ride for any operator by adjusting the air suspension seat to the operator's weight and height
- Training new operators is easier with the instructional seat that can be folded away when not in use
- Listen to music or make hands-free calls with included Bluetooth radio and microphone
- See clearly out the back window thanks to rear windshield wiper and washer
- Light the night with LED headlights and work lights for improved visibility
- Gain visibility above roof line when stacking bales or let in air on a nice day with sunroof
- Access through right-hand door makes grabbing items from cab easy from either side
- Exit the cab and find your way home or to the truck thanks to go-home lighting
- Effortlessly shut the rear window with the improved grab handle
NOTE: Auxiliary power strip field kit shown is not included in Premium Cab image at top left.
Easy headland turns with electronic quick raise lower (EQRL) of rear hitch
Simplify repetitive rear hitch lifting and lowering tasks with the Electric Quick Raise Lower (EQRL) on 5E 3-Cylinder Premium Cabs. EQRL uses one button to raise to transport height and another to lower the rear hitch back to your prescribed depth.
Easy headland turns with electronic quick raise lower (EQRL) of rear hitch
Simplify repetitive rear hitch lifting and lowering tasks with the Electric Quick Raise Lower (EQRL) on 5E 3-Cylinder Premium Cabs. EQRL uses one button to raise to transport height and another to lower the rear hitch back to your prescribed depth.
- Reduce effort performing raise/lower functions of rear hitch
- Save time setting the prescribed depth and consistently returning to it
- Accurately maintain depth or lift height
- Comfortably complete repeatable tasks with ergonomic controls at your fingertips and proximity to other common controls like throttle, PTO, and MFWD engagement
EQRL efficiency gains:
- Moving bales – keeping your rear bale spear depth perfectly set to align to the center of the bale then raise to transport height
- Disking/Mowing – raise mower when making turns and return to desired height
- Box Blade/Land planning – creating smooth surfaces for your driveway or field
- Snow blading/blowing – reduce the risk of damaging driveways and roads
Light the way as you Go-Home from your day
When leaving the field or parking the tractor in the shed, Go-Home lighting will provide light as you make your way to your vehicle or house. Included with the Premium Cab on 5E 3-Cylinder tractors.
When leaving the field or parking the tractor in the shed, Go-Home lighting will provide light as you make your way to your vehicle or house. Included with the Premium Cab on 5E 3-Cylinder tractors.
- Allow for 30 seconds of light after the engine is shut off when Go-Home lighting is activated
- Avoid battery drain with automatic shut off headlights
- Through the following steps, the go-home lighting is engaged:
Park the tractor
- Move the key to off position
- Press the Go-Home Lighting button within 15 seconds
- After pressing Go-Home Lighting button, the go-home feature is activated (headlight turns on automatically) and the operator can easily walk home with the help of the headlights. After 30 seconds, the headlights switch off automatically.
No regen required with final tier 4-compliant PowerTech™ engines on 5E 3-Cylinders
The same powerful, reliable engine you love, but now no regen required on 5E 3-Cylinder models while still meet the U.S. Environmental Protection Agency (EPA) Final Tier 4 (FT4) exhaust emissions regulations. The John Deere PowerTech™ 3029 EWR engine utilizes a diesel oxidation catalyst (DOC) and cooled exhaust gas recirculation (EGR) aftertreatment system – with no DEF fluid, no DPF, and no regen required, you can focus on completing your jobs while your tractor keeps providing the power you need.
The same powerful, reliable engine you love, but now no regen required on 5E 3-Cylinder models while still meet the U.S. Environmental Protection Agency (EPA) Final Tier 4 (FT4) exhaust emissions regulations. The John Deere PowerTech™ 3029 EWR engine utilizes a diesel oxidation catalyst (DOC) and cooled exhaust gas recirculation (EGR) aftertreatment system – with no DEF fluid, no DPF, and no regen required, you can focus on completing your jobs while your tractor keeps providing the power you need.
- Provide excellent torque and fuel efficiency
- See over the hood with compact aftertreatment design
- Outstanding performance and durability
The engine in this machine is not equipped with a spark arrestor muffler. It is a violation of California Public Resource Code Section 4442 to use or operate this engine on or near any forest-covered, brush-covered or grass-covered land unless the exhaust system is equipped with a spark arrestor meeting any applicable local or state laws. Other states or federal areas may have similar laws. See 'Spark Arrestor Screen' in exhaust attachments section if required for your operating area.
Economical and versatile selective control valve (SCV) options
5E 3-Cylinder Series Tractors can be equipped with as many as five (up to two rear and three mid) economical and versatile spool-type SCVs. These SCVs provide a high-flow rate for the tractor's hydraulic system with the open-center hydraulic system.
Benefits
Economical and versatile selective control valve (SCV) options
5E 3-Cylinder Series Tractors can be equipped with as many as five (up to two rear and three mid) economical and versatile spool-type SCVs. These SCVs provide a high-flow rate for the tractor's hydraulic system with the open-center hydraulic system.
Benefits
- Additional versatility in configuration for one up to five total SCVs depending on needs with ability to upgrade in the future
- Color coordinated controls located on the right side provide a user-friendly and ergonomic operator experience
- Upgradable, stackable mid SCVs give producers a cost-effective way to add a true third function to your tractor
- Operators not using the tractor for loader work can select a less mid SCV option
Effective in demanding applications - PowrReverser™ 12Fx12R transmission
Ample speeds and ease of operation for demanding applications with the 12F x 12R PowrReverser. The PowrReverser™ 12F/12R transmission provides a wide range of speed options, with twelve forward gears and twelve reverse gears. This versatility allows operators to select the appropriate gear for different tasks and operating conditions. This transmission comes standard with a dual speed 540/540 economy power take-off (E-PTO) which is ideal for applications requiring frequent directional changes such as loader work.
Benefits
Ample speeds and ease of operation for demanding applications with the 12F x 12R PowrReverser. The PowrReverser™ 12F/12R transmission provides a wide range of speed options, with twelve forward gears and twelve reverse gears. This versatility allows operators to select the appropriate gear for different tasks and operating conditions. This transmission comes standard with a dual speed 540/540 economy power take-off (E-PTO) which is ideal for applications requiring frequent directional changes such as loader work.
Benefits
- Effortlessly switch directions with a small finger motion using the clutch-less electrohydraulic fingertip directional lever
- Frees the right-hand to operate other tractor controls, such as the loader, rear implements, or throttle, as the directional lever allows the operator to steer and shift direction with the left-hand
- The control is located on the left side of the steering column and selects forward, reverse, and neutral positions
- Ideal for rear blading and any applications that require frequent directional changes in tight spaces
- Lower engine vibration, reduced noise, less wear and tear on the engine, reduced fuel consumption, and increased operator comfort from the standard economy PTO (E-PTO)
NOTE: A neutral start switch requires the directional lever be in the neutral position to start the engine.
12F/12R transmission includes:
12F/12R transmission includes:
- Hydraulic wet clutches (forward and reverse)
- Maximize durability and outlast the life of any dry clutch
- When tractors are run by multiple operators with a variety of experience levels, a wet clutch is the best way to maintain transmission integrity and performance while decreasing clutch replacement costs
- Platform-mounted shift levers (four gears, three ranges)
- Two platform-mounted levers offer easy and comfortable shifting for a pleasant operator experience
- The gear-shift lever is easy to reach, and the less-used range lever is shorter. Unique knobs make it easy to distinguish between the two
- Left-hand reverser
- Constant-mesh helical-cut gears
- Provide quieter operation and excellent reliability while the pressure-lubricated top shaft adds to the transmission durability
- Fully enclosed, rigid shift linkages for short throw and crisp shifts enable all operators to clearly know in what range and gear they are operating
- Pressure-lubricated top shaft
- Positive park pawl: provides positive park and eliminates the need for a hand brake
- Neutral start switch
- The forward lever selects one of four gears. The operator must depress the clutch while shifting. The rear lever selects one of three ranges: A, B, or C.
- The PowrReverser has a built-in engagement override valve for additional safety. This valve requires the clutch pedal to be depressed one time after each engine start before the transmission will begin to operate normally, giving the operator another opportunity to put all focus on the tractor.
- The speed of directional changes can be adjusted to the operator's preference or application demands with the field-installed infinitely-variable control kit.
A durable, mechanical front-wheel drive (MFWD) axle increases traction in tough conditions
Increase drawbar pull and improve traction when operating in slippery conditions with a limited-slip, heavy-duty MFWD front axle.
Benefits
Increase drawbar pull and improve traction when operating in slippery conditions with a limited-slip, heavy-duty MFWD front axle.
Benefits
- Reduce wheel slippage in demanding conditions by getting the required torque to the ground
- Diminish soil compaction with less tractor ballasting compared to two-wheel drive (2WD)
- Increase fuel economy
- Longer tire life
- Excellent maneuverability and high crop clearance
Turn around in tight spaces with a tight turning radius. Operate with consistent performance and enjoy a comfortable ride from axle oscillation that follows uneven terrain.
Axle oscillation also reduces the stress and maintenance cost on the axle spindles because loads are consistently spread across the entire axle. The centerline design eliminates the need for drive shaft universal joints that require regular maintenance. Anti-wrap shielding on the driveline is standard to prevent crop material and debris from building around the driveline and ensures tractor performance. Minimize maintenance time while maximizing front axle performance with three grease points conveniently located.
Excellent maneuverability, visibility, and comfort in one package with heavy-duty, two-wheel drive (2WD) front axle and cab
Made of heavy-duty steel for added reliability, the 2WD front axle is adjustable in 50.8-mm (2-in.) increments to adapt to a wide variety of applications.
Excellent maneuverability, visibility, and comfort in one package with heavy-duty, two-wheel drive (2WD) front axle and cab
Made of heavy-duty steel for added reliability, the 2WD front axle is adjustable in 50.8-mm (2-in.) increments to adapt to a wide variety of applications.
- The front axle provides 10 degrees of axle oscillation, allowing the axle to follow uneven terrain for a consistent performance, comfortable ride, and reduced stress and maintenance costs on axle spindles.
- A 55-degree turn angle provides excellent maneuverability for high-torque tasks in tight spaces.
- The steering cylinder is bolted directly to the rear of the front axle, so the axle housing protects the steering cylinder from potential punctures created by rough terrain, rocky soil conditions, or thick crop material.
Broadening the 5E 3-Cylinder Tractor product lineup to offer a 2WD front axle in a cab configuration provides you with the well-known benefits of the 5E 3-Cylinder Tractors in conjunction with the ability to stay out of the elements and have the tighter turning radius that 2WD front axles provide.
SyncShuttle™ 9F/3R transmission - An easy-to-use transmission which saves time and effort
The SyncShuttle transmission is designed to match the excellent power and torque characteristics of the John Deere PowerTech™ engines. The 9F/3R SyncShuttle provides nine forward and three reverse speeds with in-line synchronized shuttle shifting.
Benefits
SyncShuttle™ 9F/3R transmission - An easy-to-use transmission which saves time and effort
The SyncShuttle transmission is designed to match the excellent power and torque characteristics of the John Deere PowerTech™ engines. The 9F/3R SyncShuttle provides nine forward and three reverse speeds with in-line synchronized shuttle shifting.
Benefits
- Transmission durability is enhanced with the pressure-lubricated top shaft, allowing the operator to achieve performance from one working season to the next
- Easy and comfortable shifting
- Operator-friendly transmission controls with hand throttle
- Additional detail
- Additionally, the in-base transmission is configured with fixed draft links, single-speed power take-off (PTO) and mechanical PTO engagement.
The transmission is characterized as full top shaft synchronized (TSS) when forward shifting on-the-go between speeds and is characterized a synchronized while depressing the clutch.
Nine forward and three reverse (9F/3R) speeds are achieved by using two platform-mounted levers for shift operation. The gear lever at the operator's right hand selects one of three forward gears and one reverse gear, as well as the integrated park position. The range lever at the operator's left hand selects collar-shift A, B, and C ranges.
Operators can easily switch directions without having to completely stop the tractor with synchronized, in-line, shuttle-shift capability between forward and reverse gears on the gear-shift lever in all three ranges (A, B, and C ranges).
A neutral start switch requires the gear-shift lever be in the neutral or park positions to start the engine.
A positive park pawl on the transmission provides positive park and eliminates the need for a hand brake. This also eliminates clutch service costs that occur when the park brake is accidentally left engaged.
Standard independent 540-rpm rear power take-off (PTO) performs well in normal or heavy applications
Power an implement at 540 PTO rpm at a lower tractor engine rpm with Economy PTO (540E PTO). Depending on the transmission, the 540E PTO engine requirement could be as low as 1588 rpm. 540E PTO is ideal for many lighter-duty applications including mowing or spraying that do not require full engine horsepower.
Benefits
Nine forward and three reverse (9F/3R) speeds are achieved by using two platform-mounted levers for shift operation. The gear lever at the operator's right hand selects one of three forward gears and one reverse gear, as well as the integrated park position. The range lever at the operator's left hand selects collar-shift A, B, and C ranges.
Operators can easily switch directions without having to completely stop the tractor with synchronized, in-line, shuttle-shift capability between forward and reverse gears on the gear-shift lever in all three ranges (A, B, and C ranges).
A neutral start switch requires the gear-shift lever be in the neutral or park positions to start the engine.
A positive park pawl on the transmission provides positive park and eliminates the need for a hand brake. This also eliminates clutch service costs that occur when the park brake is accidentally left engaged.
Standard independent 540-rpm rear power take-off (PTO) performs well in normal or heavy applications
Power an implement at 540 PTO rpm at a lower tractor engine rpm with Economy PTO (540E PTO). Depending on the transmission, the 540E PTO engine requirement could be as low as 1588 rpm. 540E PTO is ideal for many lighter-duty applications including mowing or spraying that do not require full engine horsepower.
Benefits
- Save fuel
- Reduce vibration and noise level
- Increase engine life
- Additional details
How does 540E PTO work?
On John Deere Tractors, the shiftable 540/540E mode operates a little like shifting gears on the transmission. By engaging economy mode, the operator changes the gear reduction ratio keeping the PTO spinning at 540 rpm while reducing the engine rpm. When the operator shifts the PTO back into the standard 540 mode, a different gear ratio is used to operate the PTO at 540 rpm and the engine at standard PTO rated speed.
To operate in economy mode, the shiftable 540/540E lever must be in 540E and then the throttle can be increased to the appropriate rpm. When in 540E, the tractor has a throttle limiter that keeps the operator from increasing engine rpm over the 540E setting. The limiter is used to prevent accidental over-speeding of PTO implements and protection against binding the PTO shaft.
The 540E setting cannot be used with full advertised PTO horsepower. If full PTO horsepower is required, operate the tractor in the standard 540 mode.
On John Deere Tractors, the shiftable 540/540E mode operates a little like shifting gears on the transmission. By engaging economy mode, the operator changes the gear reduction ratio keeping the PTO spinning at 540 rpm while reducing the engine rpm. When the operator shifts the PTO back into the standard 540 mode, a different gear ratio is used to operate the PTO at 540 rpm and the engine at standard PTO rated speed.
To operate in economy mode, the shiftable 540/540E lever must be in 540E and then the throttle can be increased to the appropriate rpm. When in 540E, the tractor has a throttle limiter that keeps the operator from increasing engine rpm over the 540E setting. The limiter is used to prevent accidental over-speeding of PTO implements and protection against binding the PTO shaft.
The 540E setting cannot be used with full advertised PTO horsepower. If full PTO horsepower is required, operate the tractor in the standard 540 mode.
